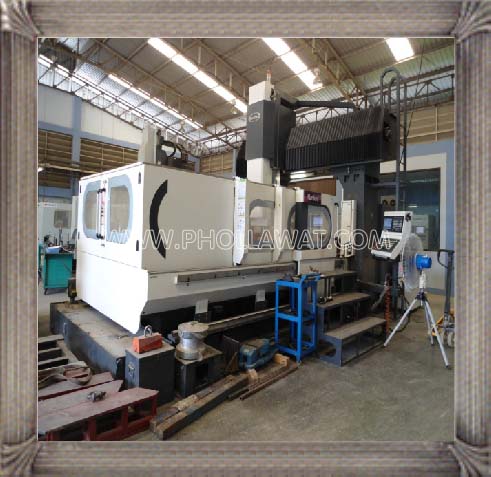

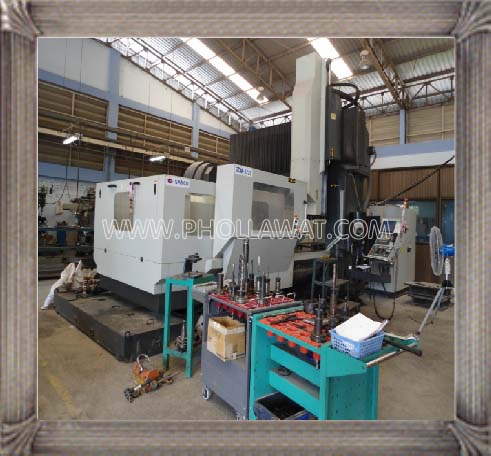

Machining Center (DOUBLE COLUMN) SANCO “ SDM 3220 ” |
|
 |
Machine Spec. Table Size: 3000x1700 mm. 3 Axis travel (X, Y, Z): 3200x1800x1400 mm. 4 Axis Rotary Table 16 Nich Spindle Speed: 6000 Rpm. Cutting Feed rate: 1-5,000 mm./min Accuracy: Positioning 0.01 mm / 300 mm Standard Jis B6201 Repeatability 0.005 mm Roundness 0.02 mm / 300 mm |

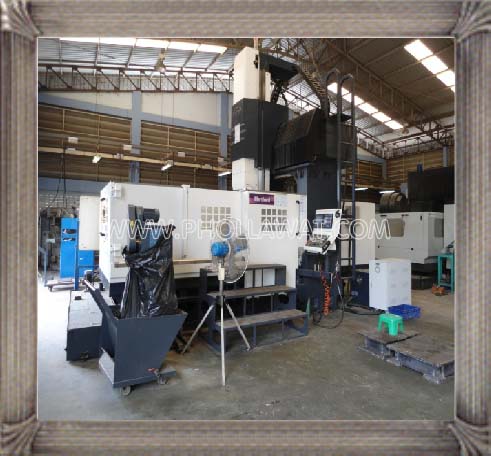

Machining Center (DOUBLE COLUMN) HARTFORD " PRO-3210 " |
|
 |
Machine Spec. 3 Axis travel (X, Y, Z): 3050x2100x780 mm. Working Surface: 3150x2040 mm. Max Table Load: 8000 kg. Spindle Speed: 6000 mm. Accuracy: Positioning ±0.005 mm. |
Machining Center (DOUBLE COLLUMN) HARTFORD "PRO-2150" |
|
 |
Machine Spec. 3 Axis travel (X, Y, Z): 2060x1560x780 mm. Working Surface : 2100x1450 mm. Max Table Load : 500 kg. Spindle Speed : 6000 mm. Accuracy: Positioning ±0.005 mm. |
