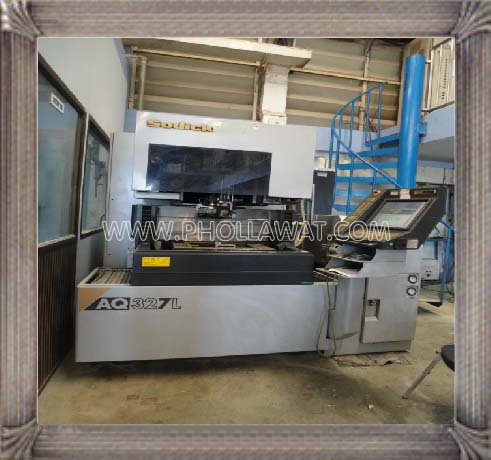

Wire Cut ( SODICK )

Machine Spec.

Axis travel (X, Y, Z): 350x280x250 mm.

Wire Size : ø 0.25

Cutting Feed rate: 0.5 - 4.5 mm./min

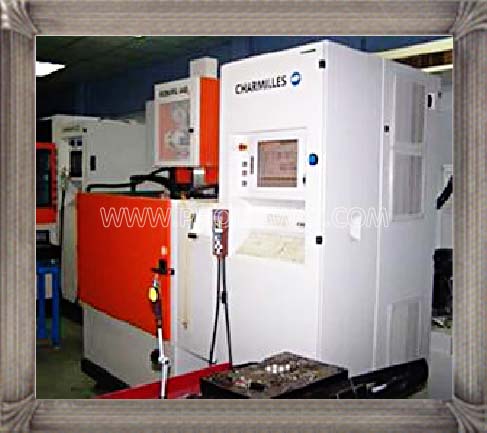

Wire Cut ( CHARMILLES-ROBOFIL 440 SL )

Machine Spec.

Axis travel (X, Y, Z): 550x350x400 mm.

Axis travel (U,V): 550x350 mm.

Wire sizes: 0.1 to 0.3

Cutting Speed: 300 mm²/hr.

Min finishing: 0.22 µm Ra.

Accuracy: 0.002 mm.

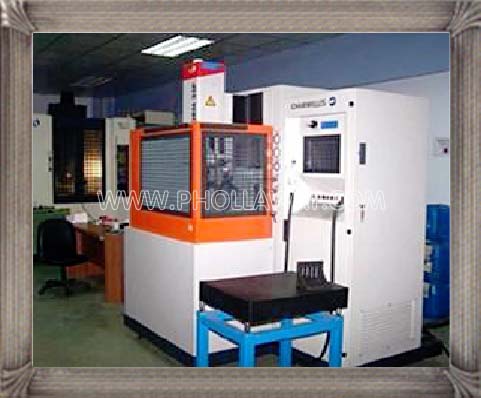

EDM ( CHARMILLES-ROBOFORM 35P )

Machine Spec.

Axis travel (X, Y, Z): 350x250x300 mm.

Table Size: 500x400 mm.

Electric current:: 64A.

Max. workpiece weight: 500 Kg.

Max. electrode weight: 50 Kg.

Contouring/Polishing: Ch.No. 0 / 0.1 µRa

Accuracy: 0.002 mm.

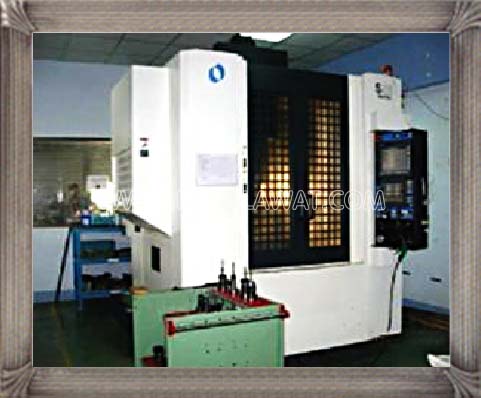

CNC Machining Center. ( MAKINO S33 )

Machine Spec.

Table Size: 850x500 mm.

Axis travel (X, Y, Z): 650x500x450 mm.

Spindle Speed: 12000 Rpm.

Cutting Feed rate: 1-40,000 mm./min

Accuracy:

Positioning (Without Scale)±0.003mm

Repeatability (With Scale)±0.002mm

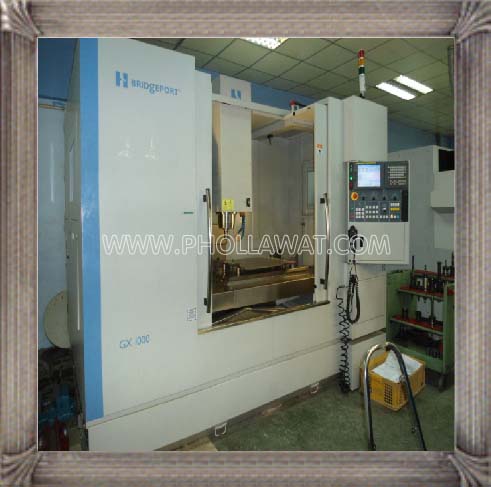

CNC Machining Center. ( BRIDGEPORT GX 1000)

Machine Spec.

Axis travel (X, Y, Z): 1020x540x540 mm.

Spindle Speed: 8000 Rpm.

Accuracy:

Positioning (Without Scale)±0.01mm

Repeatability (With Scale)±0.005mm
